Commit e66a8a11 authored by ankraft's avatar ankraft
Browse files

Merge branch 'RDM-2019-0003-SDT_4_0_–_Proposed_Changes_to_XSD' into...

Merge branch 'RDM-2019-0003-SDT_4_0_–_Proposed_Changes_to_XSD' into WI-0081-Smart_Device_Template_4_0
parents 26fd5342 eb028b1c
Branches RDM-2019-0065-SDT_4_0_-_Documentation_changes
No related tags found
No related merge requests found
Hide whitespace changes
Inline Side-by-side
Showing
with 169 additions and 83 deletions
SDT/schema4.0/docs/SDT_Components.md
+ 6
− 5
View file @ e66a8a11
......@@ -396,12 +396,13 @@ A *ProductClass* can be defined by implementing the functionalities of an existi
All elements of [DeviceClass](#DeviceClass) can be reused in *ProductClass*, but the *optional* attribute of those elements is not applicable (ignored if present).
- **[Doc](#Documentation)** : Documentation for the *ProductClass*. Optional.
- **[Extend](#Extending)** : Extension of a parent *ProductClass* from which this *ProductClass* is extended. Optional.
- **[Properties](#Property)** : Further meta-data (or properties) about the *ProductClass*. Optional.
- **[ModuleClasses](#ModuleClass)** : A list of *ModuleClass* components that are local to the *ProductClass*. Optional.
- **[SubDevices](#SubDevice)** : A list of *SubDevice* components. Optional.
- **[DeviceClass](#DeviceClass)** : Reference to a *DeviceClass* which is implemented by this *ProductClass*. Optional.
- **Extends** : Reference to a parent *ProductClass* from which this *ProductClass* is extended. Optional.
**Note**: New extended *Properties* and *ModuleClasses* **shall** have different names from those in the implemented *DeviceClass* if they're defined in the same *Domain*. Also, when extending a *ProductClass* that has a [DeviceClass](#DeviceClass) defined (or in any other parent in the inheritance hierarchy) then the child *ProductClass* **must not** define another [DeviceClass](#DeviceClass).
- **ExtendDevice** : Extension of a [DeviceClass](#DeviceClass) which is implemented by this *ProductClass*. Optional.
**Note**: New extended *Properties* and *ModuleClasses* **shall** have different names from those in the extended *DeviceClass* if they're defined in the same *Domain*. Also, when extending a *ProductClass* that has a [DeviceClass](#DeviceClass) extended (or in any other parent in the inheritance hierarchy) then the child *ProductClass* **must not** extend another [DeviceClass](#DeviceClass).
#### Example
```xml
......@@ -426,9 +427,9 @@ All elements of [DeviceClass](#DeviceClass) can be reused in *ProductClass*, but
<!-- List of Actions, Events and DataPoints goes here-->
</ModuleClass>
</ModuleClasses>
<DeviceClass>
<ExtendDevice>
<Extend domain="adomain" entity="aDeviceClass" />
</DeviceClass>
</ExtendDevice>
</ProductClass>
```
......
SDT/schema4.0/docs/SDT_UML.uxf
+ 3
− 2
View file @ e66a8a11
......@@ -993,11 +993,12 @@ fontsize=12
*@ id : Name*
/@ semanticURI : uri/
/- Doc : Doc/
/- Extend : Extend/
/* Properties : Property/
/* ModuleClasses : ModuleClass/
/* SubDevices : SubDevice/
/- DeviceClass : Extend/
/- Extend : Extend/
/- ExtendDevice : Extend/
fg=blue</panel_attributes>
<additional_attributes/>
</element>
......
SDT/schema4.0/docs/images/Product.png
+ 0
− 0
View replaced file @ 26fd5342 View file @ e66a8a11
SDT/schema4.0/docs/images/Product.png

7.78 KiB | W: | H:

SDT/schema4.0/docs/images/Product.png

8.07 KiB | W: | H:

SDT/schema4.0/docs/images/Product.png
SDT/schema4.0/docs/images/Product.png
SDT/schema4.0/docs/images/Product.png
SDT/schema4.0/docs/images/Product.png
  • 2-up
  • Swipe
  • Onion skin

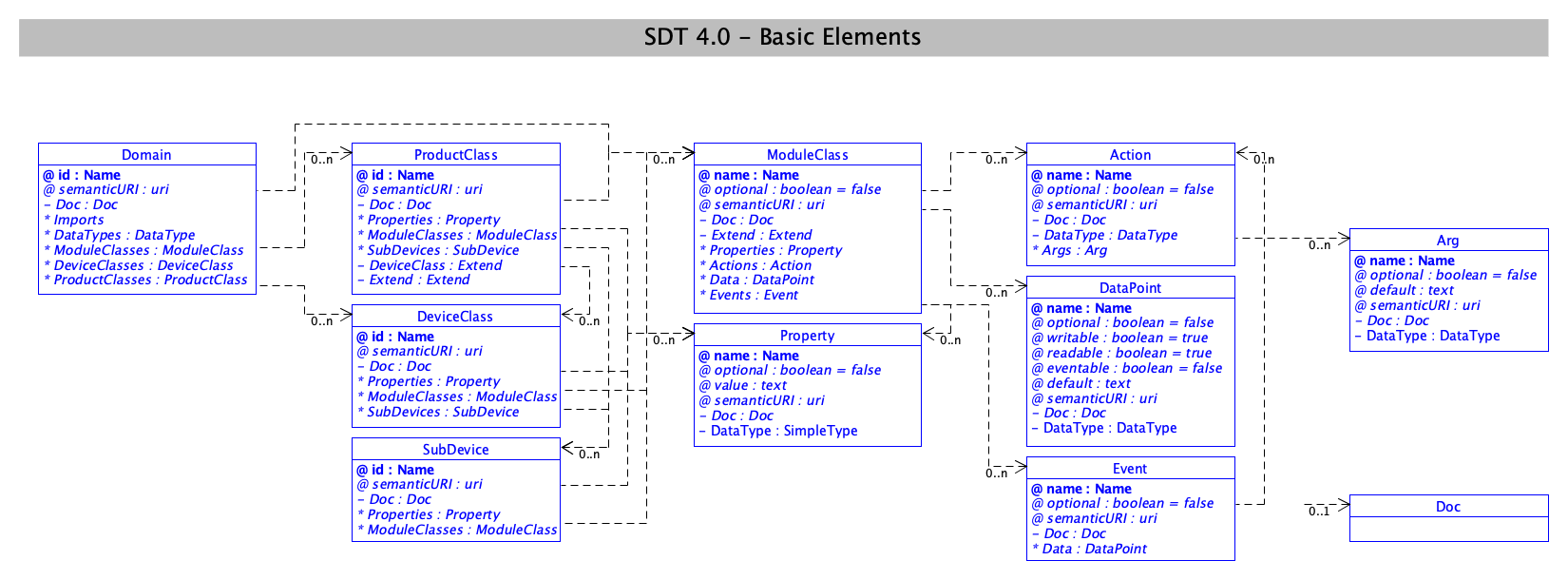

SDT/schema4.0/docs/images/SDT_UML_Basic_Elements.png
+ 0
− 0
View replaced file @ 26fd5342 View file @ e66a8a11
SDT/schema4.0/docs/images/SDT_UML_Basic_Elements.png

84.2 KiB | W: | H:

SDT/schema4.0/docs/images/SDT_UML_Basic_Elements.png

83.6 KiB | W: | H:

SDT/schema4.0/docs/images/SDT_UML_Basic_Elements.png
SDT/schema4.0/docs/images/SDT_UML_Basic_Elements.png
SDT/schema4.0/docs/images/SDT_UML_Basic_Elements.png
SDT/schema4.0/docs/images/SDT_UML_Basic_Elements.png
  • 2-up
  • Swipe
  • Onion skin

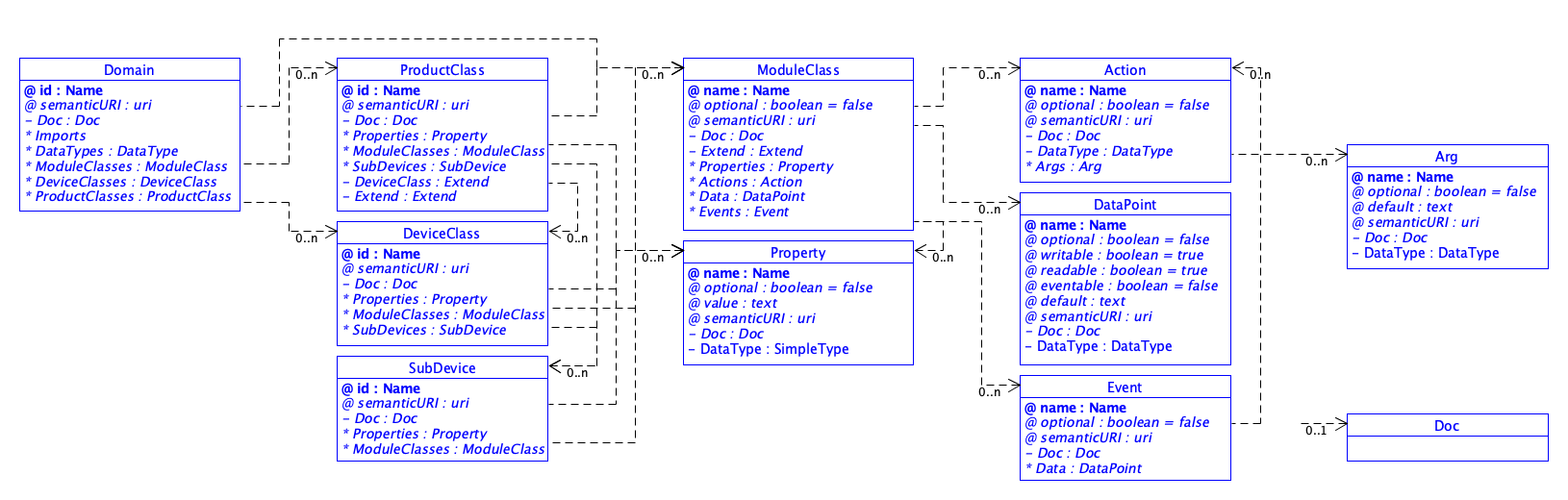

SDT/schema4.0/docs/images/SDT_simplified.png
+ 0
− 0
View replaced file @ 26fd5342 View file @ e66a8a11
SDT/schema4.0/docs/images/SDT_simplified.png

79.6 KiB | W: | H:

SDT/schema4.0/docs/images/SDT_simplified.png

79 KiB | W: | H:

SDT/schema4.0/docs/images/SDT_simplified.png
SDT/schema4.0/docs/images/SDT_simplified.png
SDT/schema4.0/docs/images/SDT_simplified.png
SDT/schema4.0/docs/images/SDT_simplified.png
  • 2-up
  • Swipe
  • Onion skin
SDT/schema4.0/etc/domain.rnc
+ 11
− 12
View file @ e66a8a11
......@@ -138,7 +138,7 @@ ProductClassesDef =
PropertiesDef?,
ModuleClassesDef?,
SubDevicesRef?,
element DeviceClass { ExtendDef }?
element ExtendDevice { ExtendDef }?
}+
}
Actions =
......@@ -187,19 +187,18 @@ Events =
Data?
}+
}
ExtendDef =
element Extend {
attribute domain { xsd:Name },
attribute entity { xsd:Name },
(element Exclude {
ExtendDef = element Extend { ExtendBodyDef }
ExtendBodyDef =
attribute domain { xsd:Name },
attribute entity { xsd:Name },
(element Exclude {
attribute name { xsd:Name },
attribute type { ExtendType }
}+
| element Include {
attribute name { xsd:Name },
attribute type { ExtendType }
}
| element Include {
attribute name { xsd:Name },
attribute type { ExtendType }
})?
}
}+)?
ExtendType =
"action"
| "datapoint"
......
SDT/schema4.0/src/domain.rng
+ 38
− 29
View file @ e66a8a11
......@@ -392,7 +392,7 @@
<ref name="SubDevicesRef" />
</optional>
<optional>
<element name="DeviceClass">
<element name="ExtendDevice">
<ref name="ExtendDef" />
</element>
</optional>
......@@ -535,34 +535,43 @@
<define name="ExtendDef">
<element name="Extend">
<attribute name="domain">
<data type="Name"/>
</attribute>
<attribute name="entity">
<data type="Name"/>
</attribute>
<optional>
<choice>
<element name="Exclude">
<attribute name="name">
<data type="Name"/>
</attribute>
<attribute name="type">
<ref name="ExtendType" />
</attribute>
</element>
<element name="Include">
<attribute name="name">
<data type="Name"/>
</attribute>
<attribute name="type">
<ref name="ExtendType" />
</attribute>
</element>
</choice>
</optional>
</element>
<element name="Extend">
<ref name="ExtendBodyDef" />
</element>
</define>
<define name="ExtendBodyDef">
<attribute name="domain">
<data type="Name"/>
</attribute>
<attribute name="entity">
<data type="Name"/>
</attribute>
<optional>
<choice>
<oneOrMore>
<element name="Exclude">
<attribute name="name">
<data type="Name"/>
</attribute>
<attribute name="type">
<ref name="ExtendType" />
</attribute>
</element>
</oneOrMore>
<oneOrMore>
<element name="Include">
<attribute name="name">
<data type="Name"/>
</attribute>
<attribute name="type">
<ref name="ExtendType" />
</attribute>
</element>
</oneOrMore>
</choice>
</optional>
</define>
......
SDT/schema4.0/src/domain.xsd
+ 33
− 32
View file @ e66a8a11
......@@ -211,24 +211,25 @@
<xs:element name="DeviceClasses">
<xs:complexType>
<xs:sequence>
<xs:element maxOccurs="unbounded" name="DeviceClass">
<xs:complexType>
<xs:complexContent>
<xs:extension base="DocDef">
<xs:sequence>
<xs:element minOccurs="0" ref="Properties"/>
<xs:element minOccurs="0" ref="ModuleClasses"/>
<xs:element minOccurs="0" ref="SubDevices"/>
</xs:sequence>
<xs:attribute name="id" use="required" type="xs:Name"/>
<xs:attribute name="semanticURI" type="xs:anyURI"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
<xs:element maxOccurs="unbounded" ref="DeviceClass"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="DeviceClass">
<xs:complexType>
<xs:complexContent>
<xs:extension base="DocDef">
<xs:sequence>
<xs:element minOccurs="0" ref="Properties"/>
<xs:element minOccurs="0" ref="ModuleClasses"/>
<xs:element minOccurs="0" ref="SubDevices"/>
</xs:sequence>
<xs:attribute name="id" use="required" type="xs:Name"/>
<xs:attribute name="semanticURI" type="xs:anyURI"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
<xs:element name="SubDevices">
<xs:complexType>
<xs:sequence>
......@@ -291,13 +292,7 @@
<xs:element minOccurs="0" ref="Properties"/>
<xs:element minOccurs="0" ref="ModuleClasses"/>
<xs:element minOccurs="0" ref="SubDevices"/>
<xs:element minOccurs="0" name="DeviceClass">
<xs:complexType>
<xs:sequence>
<xs:element ref="Extend"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element minOccurs="0" ref="ExtendDevice"/>
</xs:sequence>
<xs:attribute name="id" use="required" type="xs:Name"/>
<xs:attribute name="semanticURI" type="xs:anyURI"/>
......@@ -305,6 +300,13 @@
</xs:complexContent>
</xs:complexType>
</xs:element>
<xs:element name="ExtendDevice">
<xs:complexType>
<xs:sequence>
<xs:element ref="Extend"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="Actions">
<xs:complexType>
<xs:sequence>
......@@ -395,16 +397,15 @@
</xs:complexContent>
</xs:complexType>
</xs:element>
<xs:element name="Extend">
<xs:complexType>
<xs:choice minOccurs="0">
<xs:element ref="Exclude"/>
<xs:element ref="Include"/>
</xs:choice>
<xs:attribute name="domain" use="required" type="xs:Name"/>
<xs:attribute name="entity" use="required" type="xs:Name"/>
</xs:complexType>
</xs:element>
<xs:element name="Extend" type="ExtendBodyDef"/>
<xs:complexType name="ExtendBodyDef">
<xs:choice minOccurs="0">
<xs:element maxOccurs="unbounded" ref="Exclude"/>
<xs:element maxOccurs="unbounded" ref="Include"/>
</xs:choice>
<xs:attribute name="domain" use="required" type="xs:Name"/>
<xs:attribute name="entity" use="required" type="xs:Name"/>
</xs:complexType>
<xs:element name="Exclude">
<xs:complexType>
<xs:attribute name="name" use="required" type="xs:Name"/>
......
SDT/schema4.0/test/deviceModbusTemperature.xml 0 → 100644
+ 74
− 0
View file @ e66a8a11
<?xml version="1.0" encoding="iso-8859-1"?>
<Domain xmlns="http://www.onem2m.org/xml/sdt/4.0" xmlns:xi="http://www.w3.org/2001/XInclude" id="modbus" >
<ModuleClasses>
<ModuleClass name="temperature">
<Doc>This ModuleClass provides capabilities to represent the current temperature and target temperature of devices such as an air conditioner, refrigerator, oven, etc.</Doc>
<Data>
<DataPoint name="currentTemperature" readable="true" writable="false" eventable="true" optional="false">
<Doc>The current temperature.</Doc>
<DataType>
<SimpleType type="float" />
</DataType>
</DataPoint>
<DataPoint name="targetTemperature" readable="true" writable="true" eventable="true" optional="true">
<Doc>The desired temperature to reach.</Doc>
<DataType>
<SimpleType type="float" />
</DataType>
</DataPoint>
<DataPoint name="unit" readable="true" writable="false" eventable="true" optional="true">
<Doc>The unit of measure for the temperature values. The default is Celsius (C).</Doc>
<DataType>
<SimpleType type="string" />
</DataType>
</DataPoint>
<DataPoint name="minValue" readable="true" writable="false" eventable="true" optional="true">
<Doc>Minimum value of "targetTemperature".</Doc>
<DataType>
<SimpleType type="float" />
</DataType>
</DataPoint>
<DataPoint name="maxValue" readable="true" writable="false" eventable="true" optional="true">
<Doc>Maximum value of "targetTemperature".</Doc>
<DataType>
<SimpleType type="float" />
</DataType>
</DataPoint>
<DataPoint name="stepValue" readable="true" writable="false" eventable="true" optional="true">
<Doc>Step value allowed for "targetTemperature".</Doc>
<DataType>
<SimpleType type="float" />
</DataType>
</DataPoint>
</Data>
</ModuleClass>
</ModuleClasses>
<DeviceClasses>
<DeviceClass id="deviceModbusTemperature">
<Doc>This is a test device.</Doc>
<Properties>
<Property name="address">
<SimpleType type="string" />
</Property>
<Property name="functionCode">
<SimpleType type="string" />
</Property>
<Property name="registers">
<SimpleType type="string" />
</Property>
<Property name="slaveID">
<SimpleType type="string" />
</Property>
</Properties>
<ModuleClasses>
<!-- If a device has more than one functionality some or all properties can be moved to the ModuleClass. -->
<ModuleClass name="temperature">
<Extend domain="modbus" entity="temperature" />
</ModuleClass>
</ModuleClasses>
</DeviceClass>
</DeviceClasses>
</Domain>
\ No newline at end of file
SDT/schema4.0/test/extends-test.xml
+ 2
− 1
View file @ e66a8a11
......@@ -20,6 +20,7 @@
<ModuleClass name="TestExtendsChild">
<Extend domain="extend-test" entity="TestExtendsParent">
<Exclude name="TestExtendsDataPoint2" type="datapoint" />
<Exclude name="TestExtendsDataPoint1" type="datapoint" />
</Extend>
<Data>
<DataPoint name="TestExtendsDataPoint3" writable="true">
......@@ -30,4 +31,4 @@
</Data>
</ModuleClass>
</ModuleClasses>
</Domain>
\ No newline at end of file
</Domain>
SDT/schema4.0/test/productClass-test.xml
+ 2
− 2
View file @ e66a8a11
......@@ -22,9 +22,9 @@
</ModuleClasses>
</SubDevice>
</SubDevices>
<DeviceClass>
<ExtendDevice>
<Extend domain="deviceClass.test" entity="Test" />
</DeviceClass>
</ExtendDevice>
</ProductClass>
<!-- Derived ProductClass -->
......
