 # <br/>1    Scope
 The present document contains the Abstract Test Suite (ATS) for oneM2M as defined in oneM2M TS-0001 [1] and oneM2M TS-0004 [2] in compliance with the relevant requirements and in accordance with the relevant guidance given in ISO/IEC 96467 [6].
@@ -50,11 +137,17 @@ References are either specific (identified by date of publication and/or edition
 The following referenced documents are necessary for the application of the present document.

 `[1]    oneM2M TS-0001: "Functional architecture".`
+
 `[2]    oneM2M TS-0004: "Service Layer Core Protocol".`
+
 `[3]    ISO/IEC 9646-1 (1994): "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 1: General concepts".`
+
 `[4]    ISO/IEC 9646-2 (1994): "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 2: Abstract Test Suite specification".`
+
 `[6]    ISO/IEC 9646-7 (1995): "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 7: Implementation Conformance Statements".`
+
 `[7]    ETSI ES 201 873-1 (V4.5.1): "Methods for Testing and Specification (MTS); The Testing and Test Control Notation version 3; Part 1: TTCN-3 Core Language".`
+
 `[9]    oneM2M TS-0018: "Test Suite Structure and Test Purposes".`

 ## 2.2    Informative references
@@ -68,6 +161,7 @@ The following referenced documents are not necessary for the application of the
 > NOTE:    Available at [http://www.onem2m.org/images/files/oneM2M-Drafting-Rules.pdf](http://www.onem2m.org/images/files/oneM2M-Drafting-Rules.pdf).

 `[i.2]    oneM2M TS-0015: "Testing Framework".`
+
 `[i.3]    oneM2M TS-0025: "Product profiles".`

 # 3    Definitions and abbreviations
@@ -80,26 +174,46 @@ For the purposes of the present document, the terms and definitions given in ISO
 For the purposes of the present document, the following abbreviations apply:

 `AE    Application entity`
+
 `APT    Abstract Protocol Tester`
+
 `ATM    Abstract Test Method`
+
 `ATS    Abstract Test Suite`
+
 `CoAP    Constrained Application Protocol`
+
 `CSE    Common Service Entity`
+
 `HTTP    Hypertext Transfer Protocol`
+
 `IP    Internet Protocol`
+
 `IUT    Implementation Under Test`
+
 `MQTT    Message Queuing Telemetry Transport`
+
 `PA    Platform Adaptor`
+
 `PICS    Protocol Implementation Conformance Statement`
+
 `PX    PiXit`
+
 `SA    System Adaptor`
+
 `SUT    System Under Test`
+
 `TC    Test Case`
+
 `TP    Test Purposes`
+
 `TSS    Test Suite Structure`
+
 `TTCN    Tree and Tabular Combined Notation`
+
 `UT    Upper Tester`

+
 # 4    Conventions

 The key words "Shall", "Shall not", "May", "Need not", "Should", "Should not" in this document are to be interpreted as described in the oneM2M Drafting Rules [i.1]
@@ -126,7 +240,7 @@ Test configurations are defined to test different entities such as CSE and AE, e

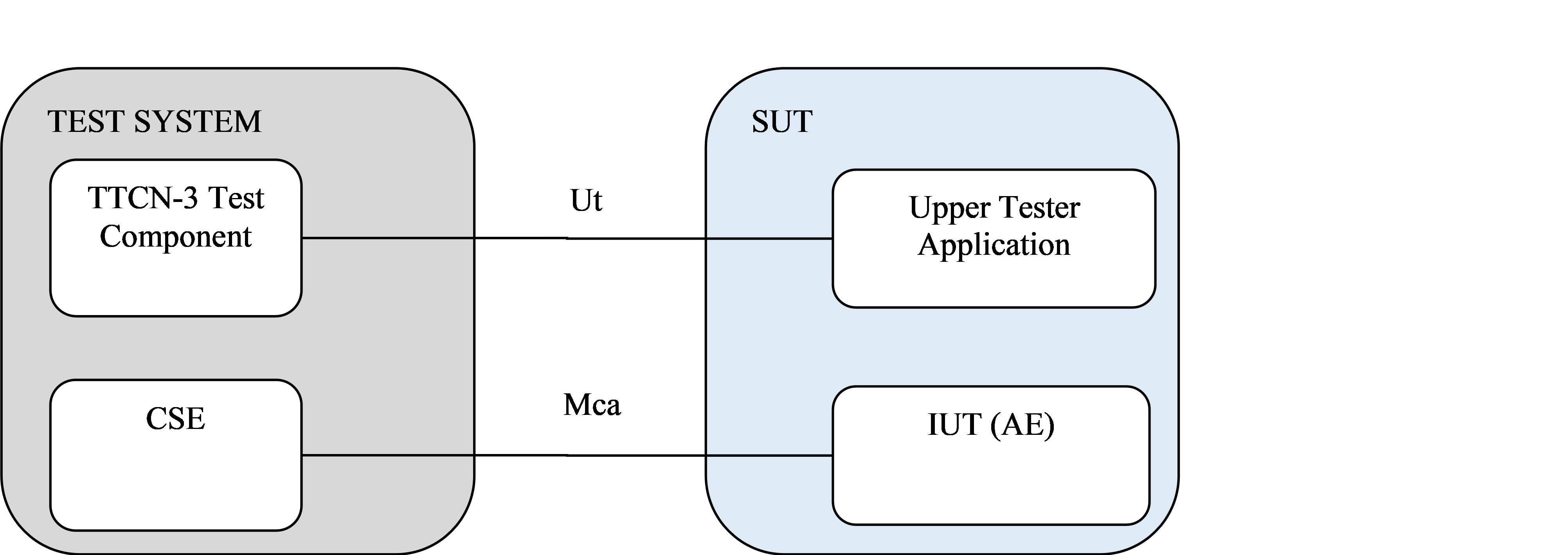

 Figure X shows a AE test configuration which is mapped to CF03 in clause 6.3.3.3 in oneM2M TS-0015 [i.2] and aligns with conformance test system architecture in clause 6.3.3.2 in oneM2M TS-0015 [i.2].
 The TTCN-3 Test Component in Test System sends triggering actions or behaviour to the Upper Tester Application of SUT through upper tester transport link Ut while the IUT sends/receives oneM2M service primitives through Mca to/from CSE in Test System.

-![media/image5.emf](media/image5.emf)
+![media/image5.png](media/image5.png)

 **Figure 5.2.1-1: AE test configuration**

@@ -137,8 +251,9 @@ The approach for the implementation of an Abstract Protocol Tester selected in o
 Following this recommendation the oneM2M tester architecture comprises a non-platform dependent Test Suite, and a platform dependent part.

 ![media/image6.png](media/image6.png)
-NOTE:    However, it can be implemented in a semi-independent manner, which will minimize the dependency to those elements.

+> NOTE:    However, it can be implemented in a semi-independent manner, which will minimize the dependency to those elements.
+>

 **Figure 5.3-1: High level oneM2M Test Architecture**

@@ -154,7 +269,8 @@ The test algorithms use the interfaces defined in [1] and [2] (mca, mcc) in orde
 1. observe the test events received from the IUT.

 In TTCN-3 these two interfaces have been implemented through a set of logical TTCN-3 ports (mcaPort and mcaPortIn for mca interface, and mccPort and mccPortIn for mcc interface) which allows oneM2M message primitives exchange with the IUT.

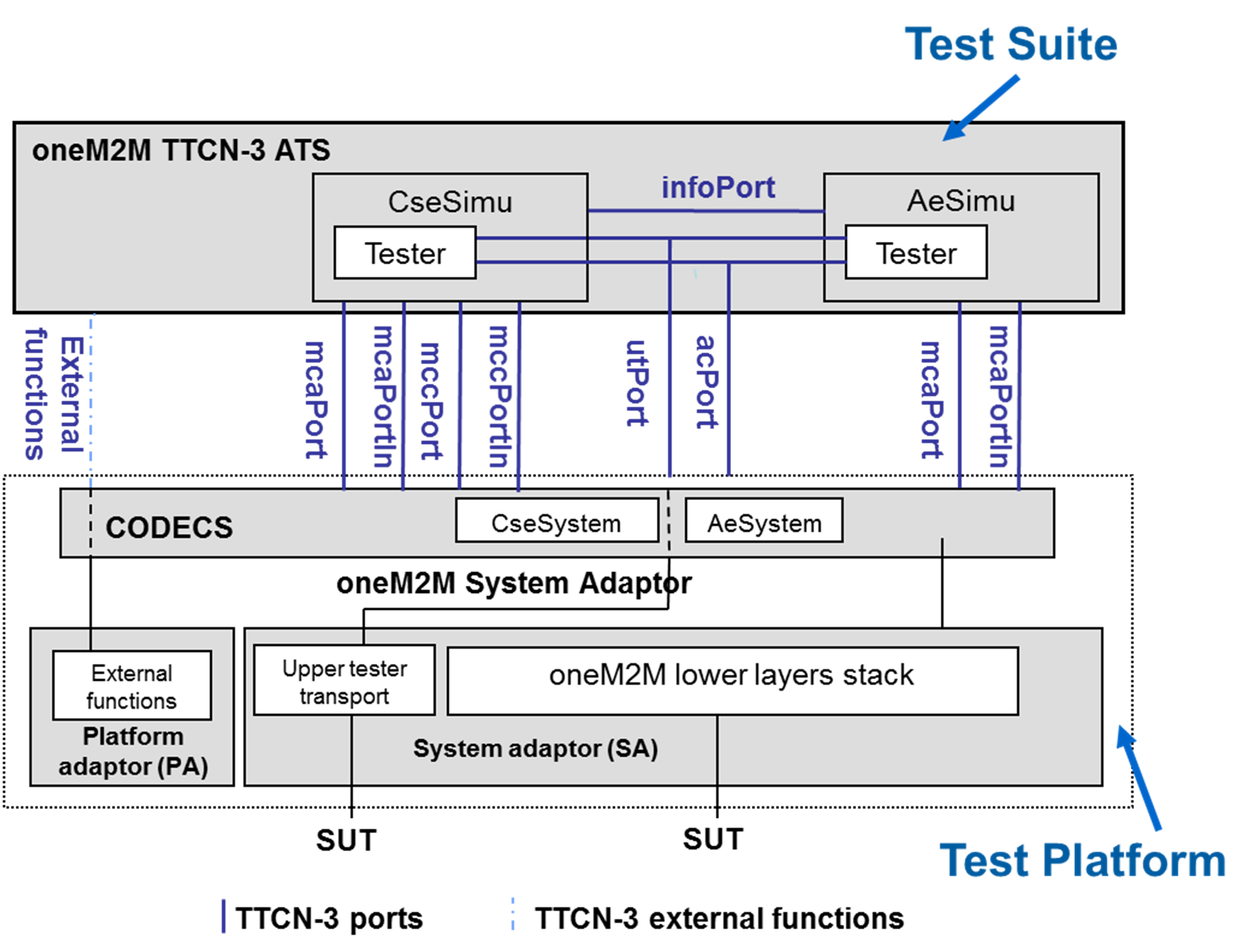

-![media/image7.emf](media/image7.emf)
+
+![media/image7.png](media/image7.png)

 **Figure 5.3-2: oneM2M Test Architecture**

@@ -191,12 +307,13 @@ These ports are used to send and receive the following message sets:
 - Response Primitives messages in accordance with [2].

 Two primitives are currently defined for these ports indicated as table 5.4.1-1:
-The M2MRequestPrimitive - to send or receive oneM2M messages to/from the IUT. Depending on the IUT to be tested:
+
+1. The M2MRequestPrimitive - to send or receive oneM2M messages to/from the IUT. Depending on the IUT to be tested:

      1. If the IUT is an AE, these messages are either received or sent by the tester which is associated with the CSE role through the mcaPortIn or the mcaPort respectively.
      1. If the IUT is a CSE, these messages are either sent or received by the tester when it plays the AE role through the mcaPort or the mcaPortIn respectively, or sent or received by the tester when it plays the CSE role through the mccPort or the mccPortIn respectively.

-The M2MResponsePrimitive - to send or receive oneM2M messages to/from the IUT. Depending on the IUT to be tested:
+1. The M2MResponsePrimitive - to send or receive oneM2M messages to/from the IUT. Depending on the IUT to be tested:

      1. If the IUT is an AE, these messages are either sent or received by the tester which is associated with the CSE role through the mcaPortIn or the mcaPort respectively.
      1. If the IUT is a CSE, these messages are either sent or received by the tester when it plays the CSE role through the mccPortIn or the mccPort respectively, sent or received by the tester when it plays the AE role through the mcaPortIn or mcaPort respectively.
@@ -240,7 +357,7 @@ oneM2M service Primitive defined for utPort is listed as follows:

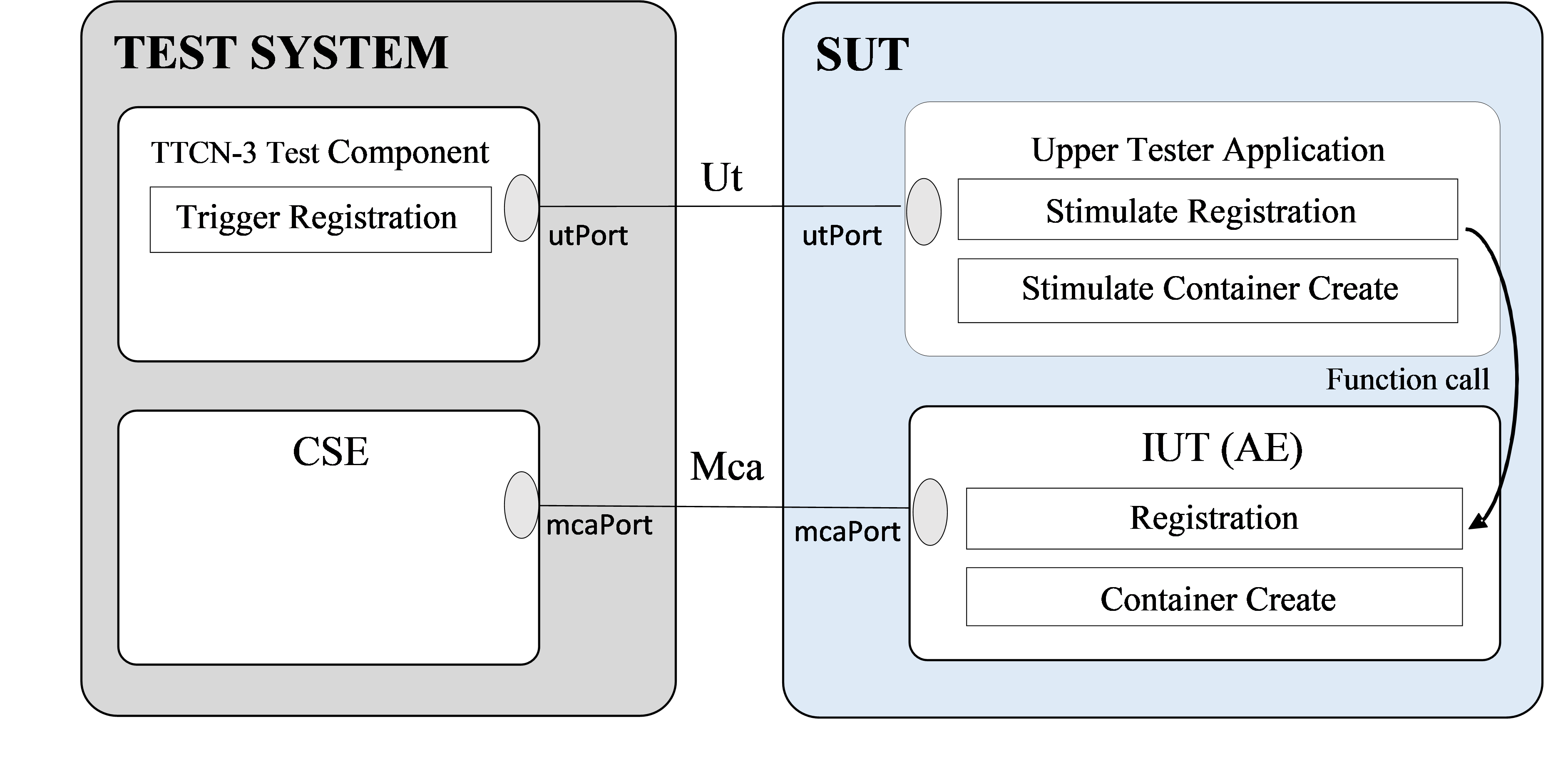

 The Upper Tester Application in SUT can be implemented as an embedded source code. An example for implementation of automated AE test for Registration is shown as figure 5.4.2.1-1.

-![media/image8.emf](media/image8.emf)
+![media/image8.png](media/image8.png)

 **Figure 5.4.2.1-1: Example of automated AE test using Ut interface**

@@ -265,7 +382,7 @@ The upper tester triggering message type maps to particular message formats for
 ##### 5.4.2.2.2    UtTrigger and UtTriggerAck Primitives
 The UtTrigger primitive is initialized by the Test System to send triggering message to the target IUT as depicted in figure 5.4.2.2.2-1. The IUT will send acknowledgement message back to the Test System using UtTriggerAck primitive if trigger message is successfully transported to the IUT. Then IUT starts interaction with Test System through oneM2M request and response primitives.

-
+![media/image9.png](media/image9.png)

 **Figure 5.4.2.2.2-1: Trigger message flow**

@@ -291,7 +408,12 @@ Table 5.4.2.2.2-2 defines UtTrigger and UtTriggerAck primitives including oneM2M

 **Table 5.4.2.2.2-2: Rules for defining UtTrigger and UtTriggerAck primitives**

-|UtTrigger primitive is represented in requestPrimitive serialized in JSON format. <br>Parameters within UtTrigger are listed as following:<br>operation: (mandatory)operation type that IUT is triggered to perform.<br>resourceType: (optional)resource type of a target resource against which IUT is triggered to perform certain operation<br>to: (mandatory)target resource against which IUT is triggered to perform certain operation. <br>primitiveContent:(optional)represents the resource attributes that shall be included in the requestPrimitive. |
+1. UtTrigger primitive is represented in requestPrimitive serialized in JSON format.
+1. Parameters within UtTrigger are listed as following:
+    - operation: (mandatory)operation type that IUT is triggered to perform.
+	- resourceType: (optional)resource type of a target resource against which IUT is triggered to perform certain operation
+	- to: (mandatory)target resource against which IUT is triggered to perform certain operation.
+	- primitiveContent:(optional)represents the resource attributes that shall be included in the requestPrimitive.



@@ -493,19 +615,23 @@ The following parameters are used by the oneM2M ATS for the correct execution of

 # 8    TTCN-3 Verifications
 The principles for Verifying the TTCN-3 test code are given in one M2M TS-0015 [i.2].
+
 All test cases provided with this document in Annex A which correspond to at least one of the product profiles defined in one M2M TS-0025 [i.3] have been verified at the time of publication of this document which corresponds with the TTCN-3 code gitlab tag provided in annex A.
-<br/>Annex A (normative):<br/>TTCN-3 library modules
+
+# <br/>Annex A (normative):<br/>TTCN-3 library modules
 A.1    Electronic annex, zip file with TTCN-3 code
 This ATS has been produced using the Testing and Test Control Notation (TTCN) according to ETSI ES 201 873-1 [7].
 This test suite has been compiled error-free using two different commercial TTCN-3 compilers.
 The TTCN-3 library modules, which form parts of the present document, are contained in the following gitLab tag:
+
 [https://git.onem2m.org/TST/ATS/tags/TST-2018-0021-TS-0019_TTCN-3_Test_cases](https://git.onem2m.org/TST/ATS/tags/TST-2018-0021-TS-0019_TTCN-3_Test_cases).
