 # 1 Scope
@@ -258,9 +207,7 @@ An abstract protocol tester (APT) is a process that provides behaviours for test

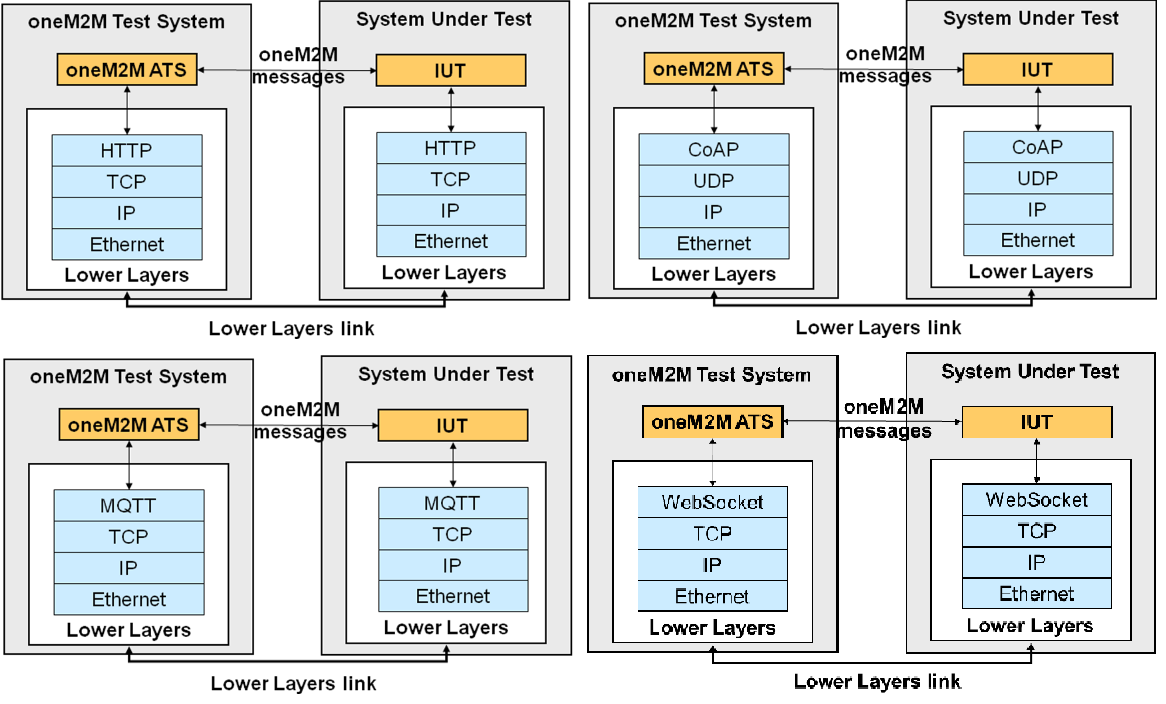

 APTs used by the oneM2M test suite are described in figure 5.1-1. The test system will simulate valid and invalid protocol behaviour, and will analyse the reaction of the IUT.


-![Figure 5.1-1: Abstract protocol testers - oneM2M](media/image2.png)                           ![Figure 5.1-1: Abstract protocol testers - oneM2M](media/image3.png)
-
-![Figure 5.1-1: Abstract protocol testers - oneM2M](media/image4.png)                           ![Figure 5.1-1: Abstract protocol testers - oneM2M](media/image5.png)
+![Figure 5.1-1: Abstract protocol testers - oneM2M](media/image2.png)

 **Figure 5.1-1: Abstract protocol testers - oneM2M**

@@ -377,10 +324,10 @@ Both primitives contain another parameters that permits to dynamically configure

 |TTCN-3 Primitive |oneM2M Message |Direction |IUT |
 |-|-|-|-|
-|M2MRequestPrimitive |Request Primitive |<=<br />=> |AE |
-|M2MRequestPrimitive |Request Primitive |=><br /><= |CSE |
-|M2MResponsePrimitive |Response Primitive |=><br /><= |AE |
-|M2MResponsePrimitive |Response Primitive |=><br /><= |CSE |
+|M2MRequestPrimitive |Request Primitive |<=> |AE |
+|M2MRequestPrimitive |Request Primitive |<=> |CSE |
+|M2MResponsePrimitive |Response Primitive |<=> |AE |
+|M2MResponsePrimitive |Response Primitive |<=> |CSE |



@@ -428,9 +375,8 @@ The upper tester triggering message type maps to particular message formats for

 |Upper Tester Control Message Type |TTCN-3 Primitives |Direction |Direction |
 |-|-|-|-|
-|Upper Tester Control Message Type |TTCN-3 Primitives |TS |UT |
-|Trigger |UtTrigger Primitive |=> |=> |
-|Trigger Acknowledgement |UtTriggerAck Primitive |<= |<= |
+|Trigger |UtTrigger Primitive |TS |UT |
+|Trigger Acknowledgement |UtTriggerAck Primitive |UT |TS |



@@ -439,7 +385,7 @@ The upper tester triggering message type maps to particular message formats for
 The UtTrigger primitive is initialized by the Test System to send triggering message to the target IUT as depicted in figure 5.4.2.2.2-1. The IUT will send acknowledgement message back to the Test System using UtTriggerAck primitive if trigger message is successfully transported to the IUT. Then IUT starts interaction with Test System through oneM2M request and response primitives.


-
+![Figure 5.4.2.2.2-1: Trigger message flow](media/image10.png)

 **Figure 5.4.2.2.2-1: Trigger message flow**

@@ -464,10 +410,21 @@ Table 5.4.2.2.2-1 defines UtTrigger and UtTriggerAck primitives including oneM2M



+The rules for defining UtTrigger and UtTriggerAck primitives are:

-**Table 5.4.2.2.2-2: Rules for defining UtTrigger and UtTriggerAck primitives**<a name="table_5.4.2.2.2-2"></a>
+1. UtTrigger primitive is represented in requestPrimitive serialized in JSON format.
+
+1. UtTrigger primitive shall be interpreted as follows:
+    - Any attribute/parameter containing a value shall be present and equal in the triggered request primitive.
+    - Any attribute/parameter containing "UNINITIALIZED" value shall be present in the triggered request primitive.
+    - Any other attribute/parameter shall comply with oneM2M TS-0004 <a href="#_ref_2">[2]</a>.
+
+1. Parameters within UtTrigger are listed as following:
+    - operation: (mandatory) operation type that IUT is triggered to perform.
+    - resourceType: (optional) resource type of a target resource against which IUT is triggered to perform certain operation
+    - to: (mandatory) target resource against which IUT is triggered to perform certain operation.
+    - primitiveContent: (optional) represents the resource attributes that shall be included in the requestPrimitive.

-|**UtTrigger**  **primitive**  **is**  **represented**  **in**  **requestPrimitive**  **serialized**  **in**  **JSON**  **format.** <br />**UtTrigger**  **primitive**  **shall**  **be**  **interpreted**  **as**  **follows:**<br />Any attribute/parameter containing a value shall be present and equal in the triggered request primitive.<br />Any attribute/parameter containing "UNINITIALIZED" value shall be present in the triggered request primitive.<br />Any other attribute/parameter shall comply with oneM2M TS-0004 <a href="#_ref_2">[2]</a>.<br />**Parameters**  **within**  **UtTrigger**  **are**  **listed**  **as**  **following:**<br />operation: (**mandatory** )operation type that IUT is triggered to perform.<br />resourceType: (**optional** )resource type of a target resource against which IUT is triggered to perform certain operation<br />to: (**mandatory** )target resource against which IUT is triggered to perform certain operation.<br />primitiveContent:(**optional** )represents the resource attributes that shall be included in the requestPrimitive. |



@@ -579,7 +536,7 @@ This clause introduces the test strategy being used for the TTCN-3 test cases. T
 The use of the TTCN-3 MTC and PTC(s) is as depicted in figure 5.6-1.


-
+![Figure 5.6-1: Use of TTCN-3 components](media/image11.png)

 **Figure 5.6-1: Use of TTCN-3 components**
